Self Build Buggy Build KIT own engine

Description
About Vigilante SBK 3 - Basic Kit (excluding engine)
- British Made Twin Stainless Steel Exhaust & metalic Cat
- ISO Standard - Approved - Manufactured Mig Welded Roll Cage
- British Steel - Made Chassis
- VOSA - Approved & European Road Legal
- Registered - British Buggy Manufacturer
- 1 Year Parts - Warranty
The Vigilante SKX kit is a self build kit suitable for someone who already has there own engine or wants to fit a different engine in than the standard engines offered. This kit includes all the necessary parts except; the engine, ECU & wiring loom. By clicking on the 'PARTS' tab above you will get a breakdown of all the parts included in this kit, and it you require more parts or kits there is a full page of all the kits and options available to build the buggy: Click Here.

The parts are available as plug and play including fitting your own engine. Our exclusive engine bay system allows easy change of engine to a totally different engine with out scratching the paintwork. We offer a factory engine fitting service to fit virtually any engine car or bike. We have an extensive work Shop in Stoke where we can customise, design, modify and get your buggy just as you want it.

Supplied:

KIT 1b - Bare Chassis ready to paint

KIT 2a - Trailing Arms

KIT 3a - Front Running Gear & Steering

KIT 4b - Suspension GAZ

KIT 6b - Copper Brake Kit

KIT 8b - Engine Installation Custom

KIT 11b - Molded Bucket Race Seats & Floor

KIT 12a - Gear Lever

KIT 13 - Handbrake

KIT 14a - Pedal Box Hydraulic Clutch FORD

KIT 15a - Cooling FORD

KIT 16a - Fuel System FORD

KIT 19c - Free Standing Lights

KIT 20b - Light Bodywork

Click here for all Build Kits
Specification
Vigilante SBK 3 - Basic Kit (excluding engine) Specifications
Engine Specification:

Engine Type Any Engine

Engine'cc' 2000 cc

Transmission Manual or Automatic

Drive 2 WD Rear with Diff

Reverse Gearbox or remote unit

Engine Cooling Water or Air

Start Key

Electrics:

Loom Type Customer Own

Dimensions:

Length o/all 3000 mm

Width o/all 1600 mm

Height o/all 1500 mm

Weight (kgs) From 450 Kgs

Centre Of Gravity (COG) Low

Wheel Centres 2230 mm

Build Features:

Steering Side RHD / LHD (optional)

Power Steering Not Required - Light

Wheel Sizes 12" ATV to 19" Car

Bolting Centres 4 / 98 & 4 / 110 & 4 / 114

Frame Colour Any Colour

Front Suspension Mc Pherson Strut with 2.1/2 adj Spring

Rear Suspension Rebound Damped adj Nitrogen Gas Suspension

Front Tyres 25x8x12 std ATV or 13" to 19" std Car Tyres

Rear Tyres 25x10x12 std ATV or 13" to 19" std Car Tyre

Winch Optional 5 Ton

Safety:

Frame Material BRITISH STEEL to ISO Standards

Roll Cage Fully Welded Roll Cage

Crumple Zones YES - Front, Rear & side Impact

Passanger Grip Handles YES

Safety Harness 4 or 5 strap Harness UK made

Seat Runners YES - Double Locking both seats

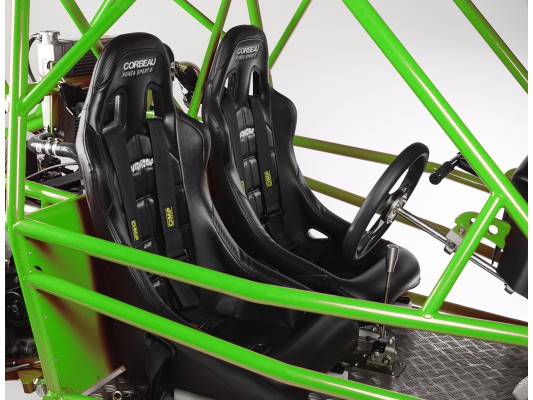

Seats Plastic Molded seats (up-gradable)

Brakes Twin system BIAS Hydraulic Car Disc Brakes Front & Rear

Handbrake Yes - Mechanical & Warning Light

Petrol Tank Position Front - away from Heat & Engine

Petrol Tank Material Alu Baffled with Roll over Breather valve

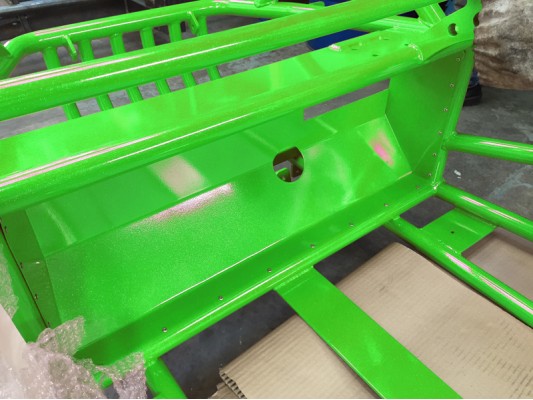

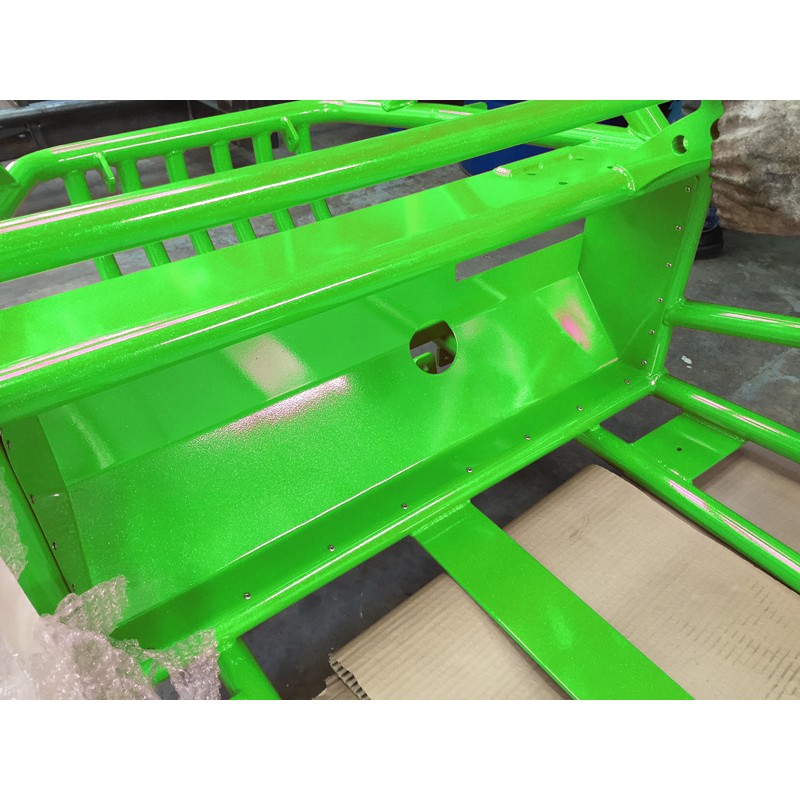

Bulkheads Metal - Front & Rear

UK Certification European & British IVA / VOSA - Approved

Warranty:

Warranty Duration 1 Year Parts

Chassis 2 Years

Service Interval 6 , 12 Months

Service & Repair:

Parts Availability on Shelf Blitzworld & Car Motorfactors World Wide
Parts

Parts for Vigilante SBK 3 - Basic Kit (excluding engine)

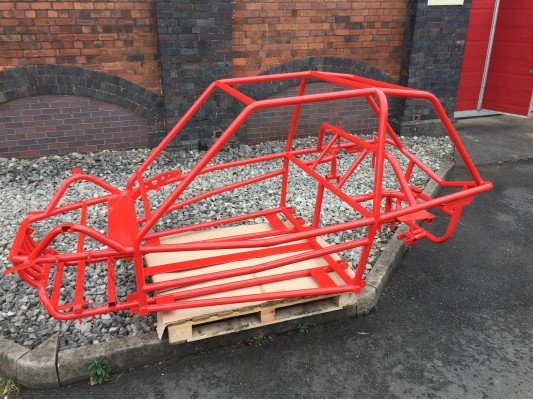

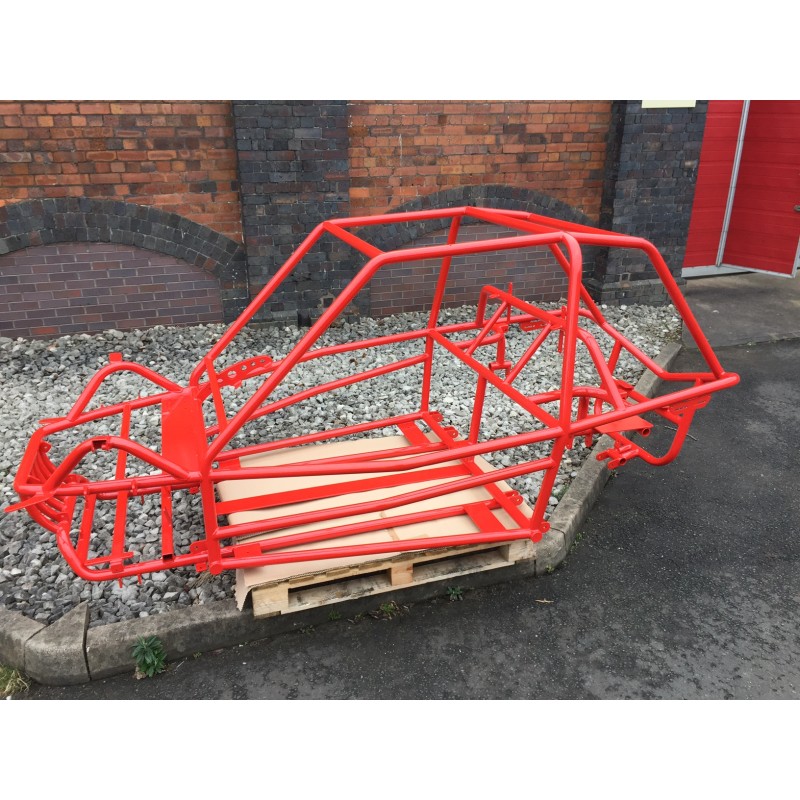

KIT 01b - Chassis Bare

The Blitzworld BARE chassis is supplied ready to paint or powder coat. This chassis offers you the o..

£1,995.00 ex VAT
(£2,394.00)

new 2024

KIT 2a - Trailing Arms

The Vigilante trailing arm unit comes complete with bearings, rod ends and wheel hub fitted. Th..

£795.00 ex VAT
(£954.00)

Ready To Fit

KIT 3a - Front Running Gear & Steering

The front runnging gear kit includes; the front lower arms, front hubs, bearings, brake disc, whee..

£795.00 ex VAT
(£954.00)

Ready To Fit

KIT 4b - Suspension GAZ

This is the budget GAZ suspension kit with rebound damping for the rear arms. The rebound damping pl..

£1,595.00 ex VAT
(£1,914.00)

Ready To Fit

KIT 5c - Customers Own Wheels & Tyres

Customers own wheels & Tyres..

£0.00 ex VAT
(£0.00)

KIT 6b - Brake lines Kit Copper

The Blitzworld brake line kit is designed for the Vigilante buggy and is a plug and play system, whe..

£550.00 ex VAT
(£660.00)

Custom Fit

KIT 7e - Customers Own Engine

The Vigilante buggy will take virtually any engine, just bring the whole engine, gearbox and drive..

£0.00 ex VAT
(£0.00)

KIT 8b - Engine Installation CUSTOM

For None standard engines to our 3 standard (see KIT 8a) we can custom fit virtually any engine into..

£795.00 ex VAT
(£954.00)

Custom Fit

KIT 9c - Customers Own Drive Shafts

Due to the different combinations and powers of engines, the drive shafts can be joined together..

£0.00 ex VAT
(£0.00)

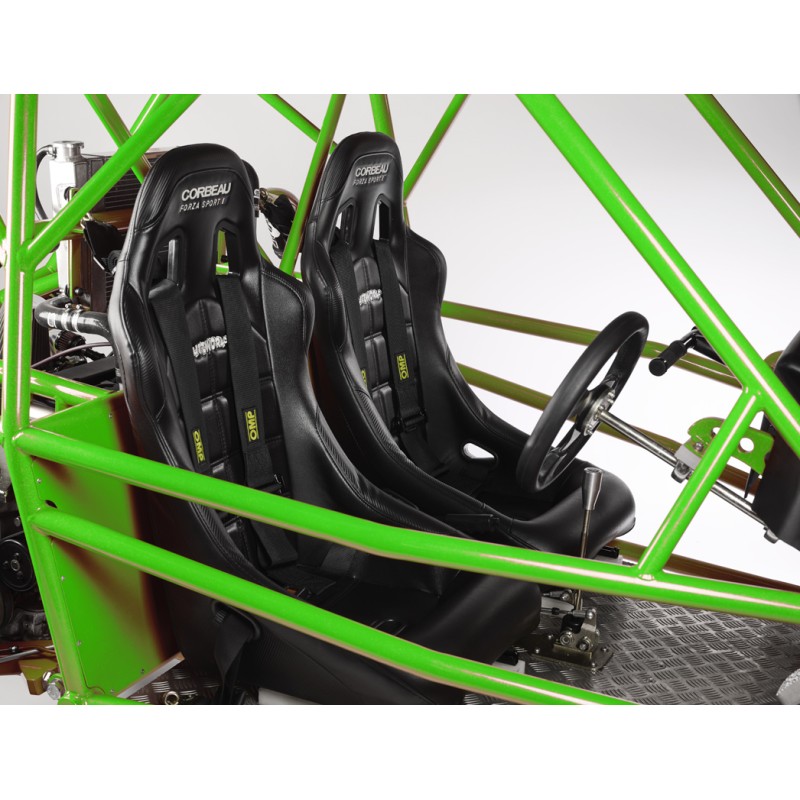

KIT 11b - Molded Bucket Race Seats & Floor

For the OFF ROAD ONLY buggy we have gone for a very hard wearing molded plastic seat that can be jet..

£595.00 ex VAT
(£714.00)

Ready To Fit

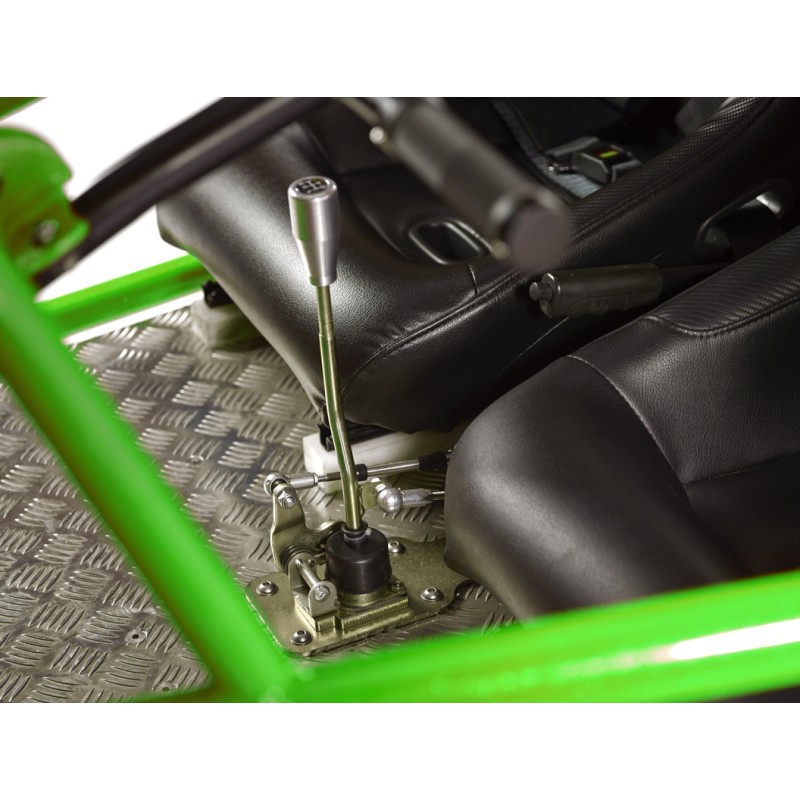

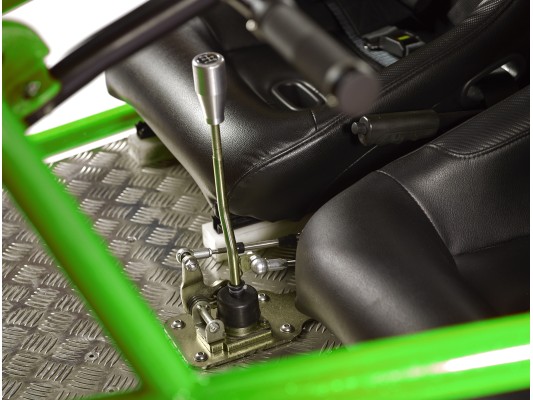

KIT 12a - Gear Lever FORD

The Blitzworld Vigilante gear lever assembly, also comes complete with Blitzworlds own designed..

£465.00 ex VAT
(£558.00)

Ready To Fit

KIT 13 - Handbrake

Vigilante handbrake lever assembly is very strong and robust to take the forces applied due to the n..

£195.00 ex VAT
(£234.00)

Plug & Play

KIT 14a - Pedal Box Hyd-Clutch (FORD) Road Legal

Blitzworld have now designed and made our own pedal box which will accommodate cable or hydraul..

£550.00 ex VAT
(£660.00)

Ready To Fit

KIT 15a - Cooling FORD

The Vigilante FORD Radiator is includes the elbows, hoses and temperature sensor. Supplied: 1 off ..

£595.00 ex VAT
(£714.00)

Ready To Fit

KIT 16a - Fuel System FORD

The Vigilante Fuel Kit is suitable for all engines from 900cc to 2000cc +. The kit includes the fuel..

£850.00 ex VAT
(£1,020.00)

Ready To Fit

KIT 17d - Customers Own ECU

For some engines like the Honda Type-R and some automatics you can reprogram the existing ECU saving..

£0.00 ex VAT
(£0.00)

KIT 18c - Customers Own Wiring Loom

On some builds you can use the existing wiring loom out of a donor cas, which can be modified to sui..

£0.00 ex VAT
(£0.00)

KIT 19c - Free Standing Lights compact

The Vigilante lights kit is suited to the Vigilante buggy and the full bodywork kit. The rear lights..

£495.00 ex VAT
(£594.00)

Plug & Play

KIT 20b - Muds & Bonnet

The Vigilante Muds and Bonnet kit is road legal and is suited for OFF and ON road driving. The mudgu..

£595.00 ex VAT
(£714.00)

Plug & Play
